FUJI-FHSP50

FUJI-FHSP50

Other attributes

Place of OriginZhejiang, China
Brand NameFUJIHD
UsageResidential Elevators
Drive TypeAC
Elevator TypePassenger Elevators
TypeElevators
ControlVVVF
Car coverpainted steel plate, decorative lamp
Car wallStainless steel hairline, etched mirror
Car doorStainless steel hairline
Initial floor landing doorStainless steel hairline
Other floor landing doorPainted steel palate
Rated Speed1.0~1.75m/s (Elevator )
CertificatesCE, ISO900, EAC, GOST, SONCAP, CCVO, etc.
Warranty18 months

Packaging and delivery

Packaging DetailsUpon buyer’s request usually in the wooden carton.like 40HQ, suitable for shipping
PortShanghai, China

Supply Ability

Supply Ability12000 sets

High performance and intelligent CPU control system

Using a new generation of high-performance CPU technology and printing board system architecture, the elevator master control system is realized by the multi-chip architecture of motor drive, elevator control management, elevator communication and FPGA logic control. Multi-cpu cooperative work greatly improves the performance of elevator system, multi-CPU redundancy protection and FPGA hardware monitoring improve the stability and security of the system.

Traction Machine

The tractor is miniaturized by reducing shaft load, motor torque and brake torque. No additional excitation current and rotor current are required, which saves about 30% of energy compared to traditional turboworm tractors. The traction system with 2:1 rope winding ratio is adopted, and the traction machine is miniaturized by reducing shaft load, motor torque and braking torque. The brake adopts external direct acting drum structure, which has the characteristics of low energy consumption, simple structure, simple structure and easy maintenance.

GB / T 7588 . 1 is an available option GB / T24478-2009
GB / T 7588 . 1 is an available option GB / T24478-2009
GB / T 7588 . 1 is an available option GB / T24478-2009

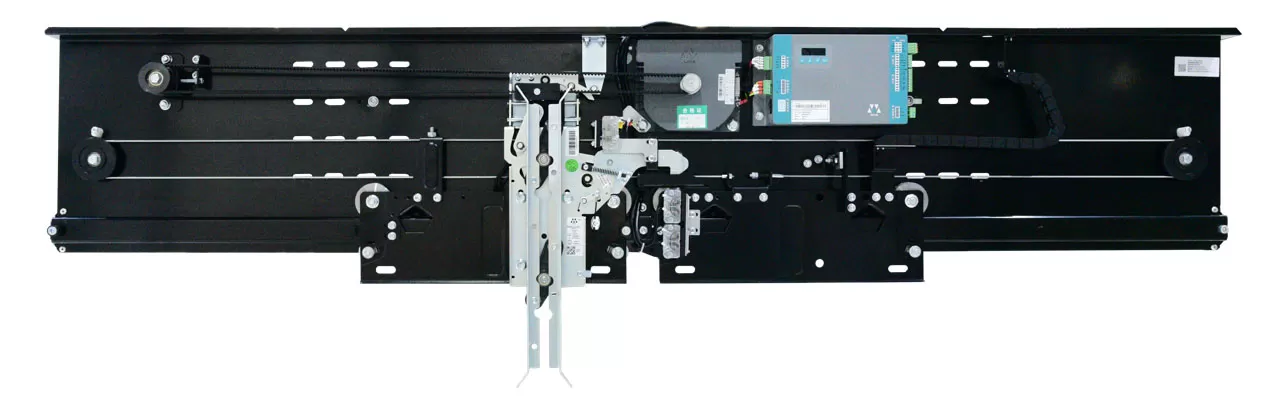

FUJIHD slim permanent magnet synchronous motor directly drives the door motor

Slim permanent magnet synchronous motor directly drives the door motor, reducing the volume of the door motor. The microcomputer controlled VVVF door motor speed regulation system makes the door run intelligently, and can automatically adjust the running speed graphics and torque of the door according to the operating conditions of each station door (such as door weight, etc.) to achieve accurate, smooth and quiet opening and closing action, while effectively improving the efficiency of the door motor.

Feature

Delicate Drive, Space-Saving

Compared with traditional motors, permanent magnet synchronous gearless traction machine has simpler structure, smaller volume, lighter weight, more flexible shape and size to meet the design of small machine room, so as to save the machine room space for users.

Intelligent Control, Precise and Reliable

Benefited from the control of high-precision encoder, the speed detection accuracy is rather high and the elevator stops very precisely.

Economic Operation, Green Energy-Saving

Energy transmission efficiency is up to more than 95%starting current is small, heat productivity is small, energy-saving effect is obvious. Compared with traditional motors, it can save energy more than 30%. ln addition, there is no need for the complex lubricating system of the traditional motor, which avoids oil nollution and makes the maintenance simper.

Mute Operation, Smooth and Comfortable

Gearless motor is driven by electro-magnetic force with low-speed non-contact operation, which avoids mechanical wear.vibration and noise of reduction box during the transmission process, and makes the elevator run very smoothly.

Standard Function

  • Car arrival gong——Arrival gong in the car top announces that the passengers arrives
  • VVVF drive——Motor rotating speed can be precisely adjusted to get smooth speed curve in elevator start,travel and stop and gain the sound comfort.
  • VVVF door operator——Motor rotating speed can be precisely adjusted to get the more gentle and sensitive door machine start/stop.
  • Independent running——The elevator can not respond to outer calling,but only respond to the command inside the car through the action switch.
  • Automatic pass without stop——When the car is crowded with the passengers or the load is close to preset value,the car will automatically pass the calling landing in order to keep maximum travel efficiency.
  • Automatically adjust door opening time——Door-open time can be automatically adjusted according to the difference between landing calling or car calling.
  • Reopen with hall call——In the door shutting process,press reopen with hall call button can restart the door.
  • Express door closing——When the elevator stops and opens the door,press door-shut button,the door will be closed immediately.
  • Car stops and door open ——The elevator decelerates and levels,the door only opens after the elevator comes to a complete stop.
  • Direct parking——It completely accords with distance principle with no crawing in the leveling. It greatly enhances the travel efficiency.
  • Anti-stall timer protection——The elevator stops operation due to slippery
  • Photocell protection——In the door open and shut period. infrared light that covers the whole door height is used to probe the door protection device of both
  • Designated stop——If the elevator can not open the door in the destination floor out of some reason,the elevator will close the door and travel to the next designated floor.
  • Overload holding stop——When the car is overload,the buzzer rings and stops the elevator in the same floor.
  • Anti-stall timer protection——The elevator stops operation due to slippery traction wire rope.
  • Start protection control——If the elevator does not leave door zone with in the designated time after it gets started,it will stop the operation.
  • Inspection operation——When the elevator enters into inspection operation,the car travels at inching running.
  • Fault self-diagnosis——The controller can record 62 latest troubles so as to quickly remove the trouble and restore the elevator operation.
  • Repeated door closing——If the elevator can not close the door due to certain obstacle or interference,the elevator will reopen or re-shut the door until sundries are eliminated.
  • Up/down over-run and final limit protection——The device can effectively prevent from the elevator’s surging to the top or knocking the bottom when it is out of control.It results in more safe and reliable elevator travel.
  • Down over-speed protection device——When the elevator downs 1.3 times higher than the rated speed,this device will automatically cut off control mains,stop the motor running.safety tongs act to force the elevator stop in order to ensure the safety.
  • Upward over-speed protection device——When the elevator up speed is 1.3 times higher than rated speed,the device will automatically decelerate or brake the elevator.
  • Floor and direction indicator inside car——The car shows the elevator floor locat
  • Micro-touch button for car call and hall call——Novel micro-touch button is used for operation panel command button in the car and landing calling button.
  • Floor and direction indicator inside car——The car shows the elevator floor location and current travel direction.
  • Floor and direction indicator in hall——The landing shows the elevator floor locating and current travel direction.
  • Emergency car lighting——Emergency car lighting automatically activated once
  • Inspection operation——When the elevator enters into inspection operation,the car travels at inching running.
  • Five way intercom——Commununication amid car,car top,elevator machine room,well pit and rescue duty room through walkie-talkie.
  • Bell——In emergency conditions.if bell button above car operation panel is continuously pressed.electric bell rings on top of the car.
  • Fire emergency return——If you start key switch in main landing or monitor screen,all the callings will be cancelled.The elevator directly and immediately drives to the designated rescue landing and automatically opens the door.
  • Fire emergency return——If you start key switch in main landing or monitor screen,all the callings will be cancelled.The elevator directly and immediately drives to the designated rescue landing and automatically opens the door.
  • Car ventilation, light automatic shut off——If there is no calling or command signal within the stipulated time,the car fan and lighting will be automatically closed in order to save the energy.
  • Remote shut-off——The elevator can be called to main landing (after finishing the service) through the key switch and automatically exists the service.
  • Car ventilation, light automatic shut off——If there is no calling or command
  • Car ventilation, light automatic shut off——If there is no calling or command signal within the stipulated time,the car fan and lighting will be automatically closed in order to save the energy.
  • Remote shut-off——The elevator can be called to main landing (after finishing the service) through the key switch and automatically exists the service.

Optional Function

  • Uninterrupted power supply(OPS)——In normal power failure,the chargeable
  • Uninterrupted power supply(OPS)——In normal power failure,the chargeable battery supplies the elevator power.The elevator drives to the nearest landing.
  • Anti-nuisance——In the light elevator load,when three more commands appear
  • Anti-nuisance——In the light elevator load,when three more commands appear,in order to avoid the unnecessary parking,all the registered callings in the car will be cancelled.
  • Open the door in advance——When the elevator decelerates and enters into door open zone,it automatically opens the door to enhance the travel efficiency.
  • Command register cancel——If you press the wrong floor command button in the car,twice continuous pressing of the same button can cancel the registered command.
  • Duplex control——Two sets of same model elevators can unanimously respond the calling signal through the computer dispatch. In this way.it reduces the passengers’ waiting time to the greatest extent and enhances the travel efficiency as well.
  • Voice system——When the elevator normally arrives,voice
  • Voice system——When the elevator normally arrives,voice announcer informs the passengers about the relevant information.
  • Car assistant operation box ——It is used in the large loading weight lifts or the elevators with crowded passengers so that more and more passengers can use the car.
  • Operation box for the handicapped——It is convenient for the wheelchair passengers and those who have vision problems.
  • Intelligent calling service——The car command or hoist-way calling can be locked or connected through special Intelligent Input.
  • Camera function in the car ——The camera is installed in the car to monitor
  • Remote monitor——The elevator long-distance monitor and control can be fulfilled through modem and telephone,It is convenient for the factories and service units to timely know the travel conditions of every elevator and promptly take the corresponding measures.
  • Camera function in the car ——The camera is installed in the car to monitor the car conditions.

Parameter Table

Persons

(kg)

(m/s)

Net size of car

(mm)

Net size of door

D.WxD.H

(mm)

Shaft size

(mm)

Machine room size

(mm)

C.WxC.DxD.H

2P Central opening

H.WxH.D

HR.H

PIT

MR.WxMR.D

MR.H

6

450

1.0

1400x850x2300

800×2100

2000×1800

4000

1500

2000×1800

2500

1.5/1.75

4400

8

630

1.0

1400×1100×2300

800×2100

2000×2050

4200

1500

2000×2050

2500

1.5/1.75

4400

1600

10

800

1.0

1400x1350x2300

800×2100

2000×2300

4200

1500

2000×2300

2500

1.5/1.75

4400

1600

2.0

4800

1800

2.5

2000

13

1000 (1050)

1.0

1600x1450x2300

1100x2300x2300

(Residence/stretcher

elevator)

900×2100

2200×2400

2050×2850

(Residence

stretche

elevator)

4200

1500

2200×2400

2050×2850  (Residence/ stretcher  elevator)

2500

1.5/1.75

4400

1600

2.0

4800

1800

2.5

2000

3.0

5200

2600

3.5

5500

3100

4.0

6000

3850

16

1250

1.0

1900x1450x2300

1100×2100

2500×2400

4200

1500

2500×2400

2500

1.5/1.75

4400

1600

2.0

4800

1800

2.5

2000

3.0

5200

2600

3.5

5500

3100

4.0

6000

3850

18

1350

1.0

1900x1550x2300

1100×2100

2500×2500

4200

1500

2500×2500

2500

.5/1.75

4500

1600

2.0

4800

1800

2.5

2000

3.0

5200

2600

3.5

5500

3100

4.0

6000

3850

21

1600

1.0

1900x1800x2300

1100×2100

2500×2800

4200

1500

2500×2800

2500

1.5/1.75

4500

1600

2.0

4800

1800

2.5

2000

3.0

5200

2600

3.5

5500

3100

4.0

6000

4000

6.0

1900x1800x2300

1100×2100

2700×2900

6350

5000

4200×2900

2500

10.0

1900x1800x2800

2800×3000

8800

7200

4300×3000

3800

26

2000

1.0

1900x2200x2300

1100×2100

2700×2800

4500

1500

2700×2800

2500

1.5/1.75

4700

1600

2.0

5000

1800

4.0

1900x2200x2800

1100×2100

3200×3000

6000

3850

4000

4700×3300

3800

6.0

6400

8.0

7500

6000

10.0

8800

7200
